Vi00103 | Ethernet and PoE Port Multiplexer
)
)
)
)
The NetMux™ Vi00103 port multiplexer enables connecting two
IP/POE devices using a single Cat5/6 cable. It includes a port Combiner and a

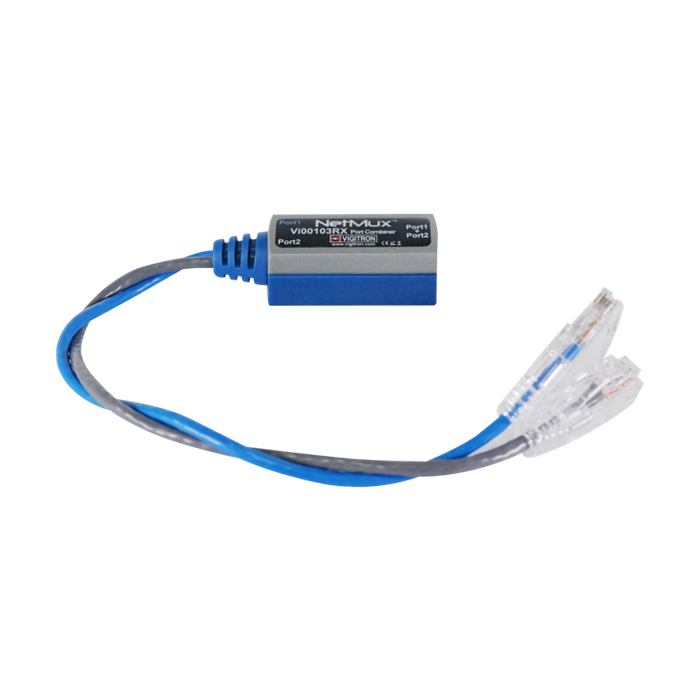

Port Splitter. The Vi00103RX combines two IP/PoE signals and transmits them
through only one Cat5/6 cable. It has two built-in 10-inch Cat 5 pigtail cables

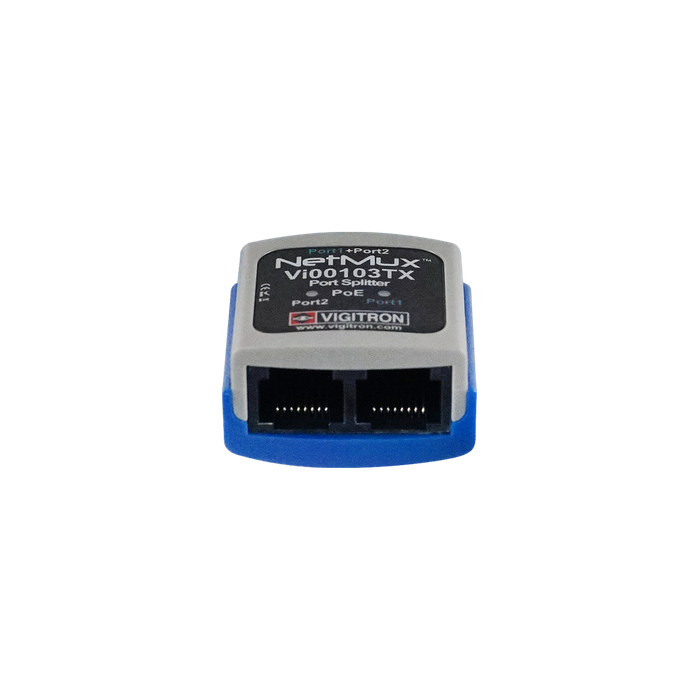

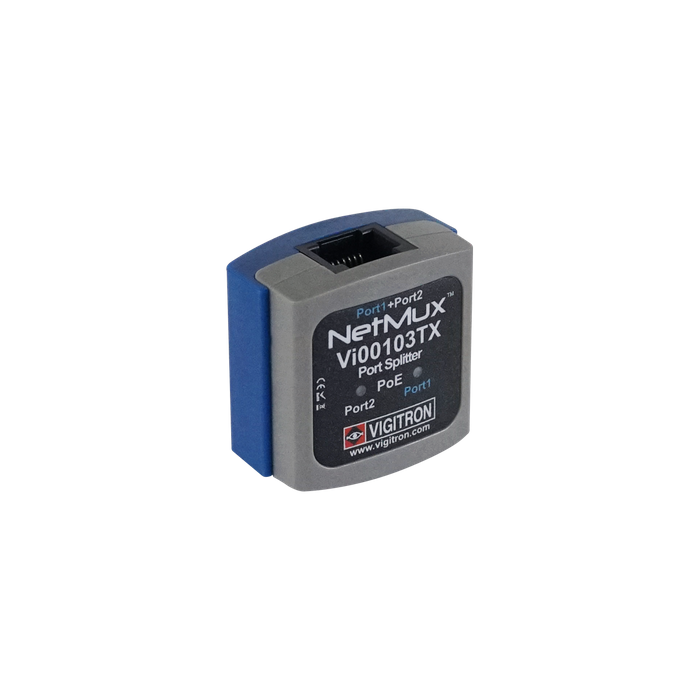

to connect to the PoE switch. The Vi00103TX separates the combined signals and
connects them to two ports of the PoE switch. It has two integrated LEDs to
provide an indication of the PoE status for each port.
The Vi00103 can handle PoE inputs of up to 37W for each
connected device. The NetMux™'s innovative design is compact and easy to use.
It is compatible with IEEE 802.af, IEEE 802.at, and most non-standards POE
systems up to 37W for 10/100 BASE-T environments.
NetMux™ is a perfect solution for reducing installation
costs or adding PoE cameras or other IP/PoE devices to an existing
installation.
)
)
)
)
)
)
)
