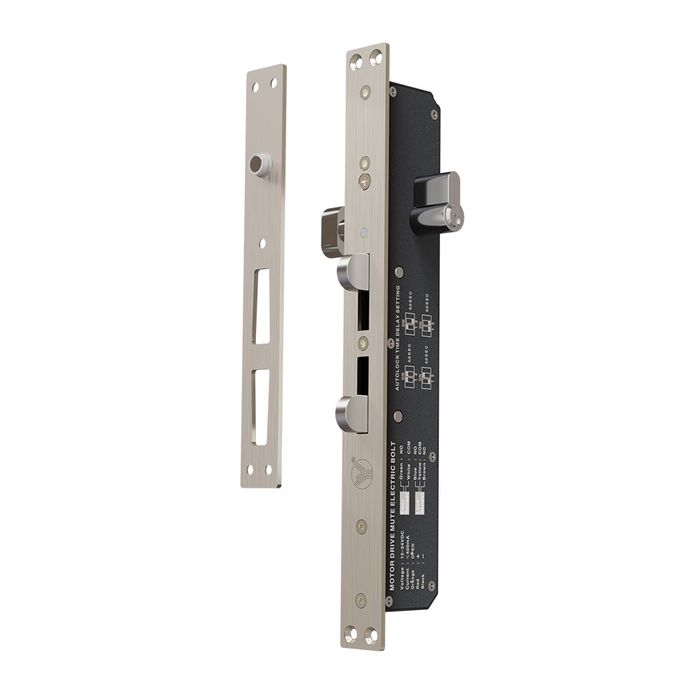

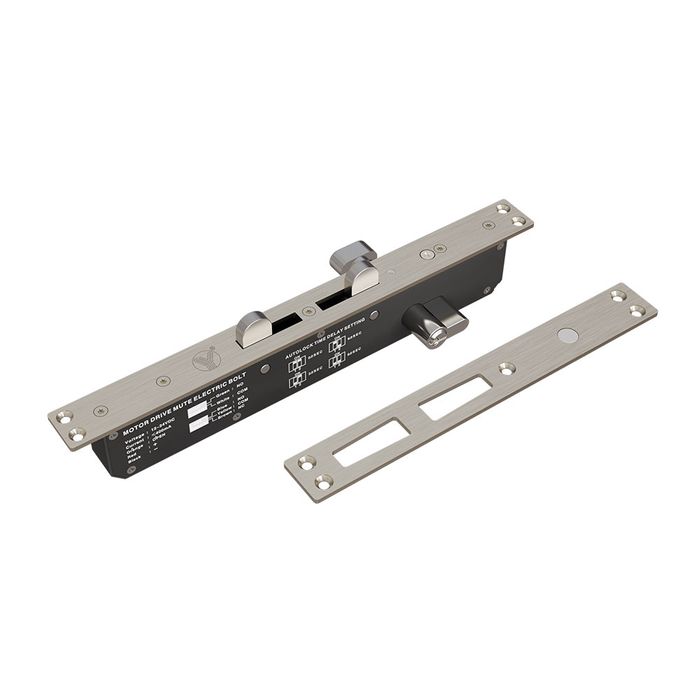

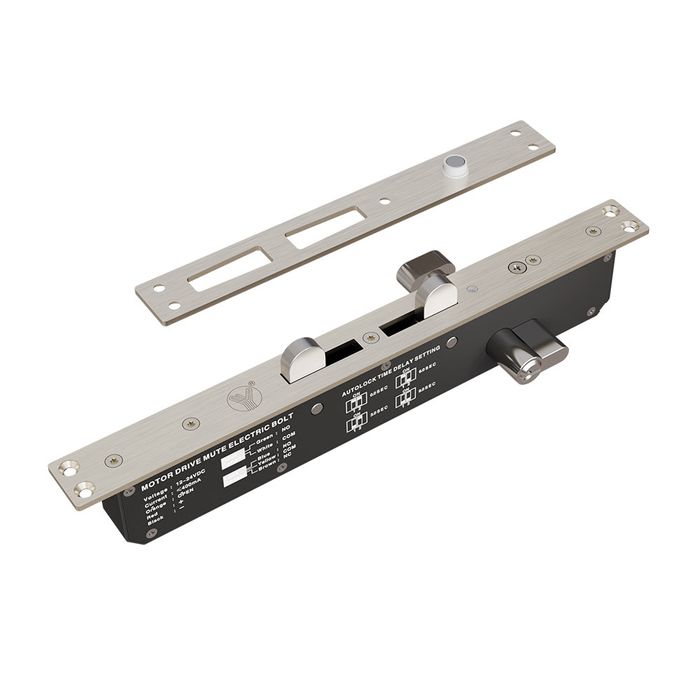

Motor Driven Electric Lock with Double Bolt
)
)
)
Model: YB-241DMD(LED)
Electric Strike Size: 325Lx30Wx48H(mm)
Dimensions of Strike Plate: 325Lx30Wx3H(mm)
Voltage: 12~28VDC
Current: ≤500mA
Signal Output: Door Status Signal Output(NO/NC/COM)
Time Delay: 0/3/6/9sec
LED: Red shows locked; Green shows unlocked
Detection Distance: 8mm
Material: 304 stainless steel, wire draw finishing
Suitable for: metal door, glass door
Weight: 1.5Kg
