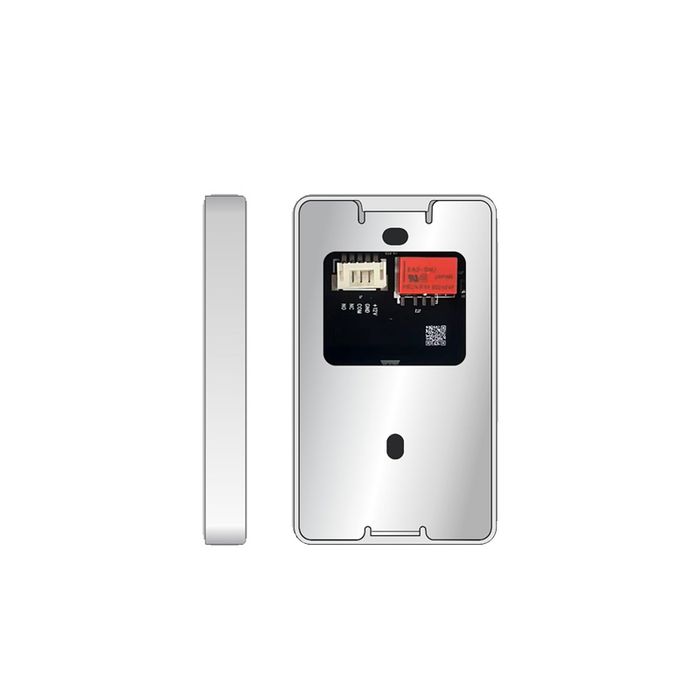

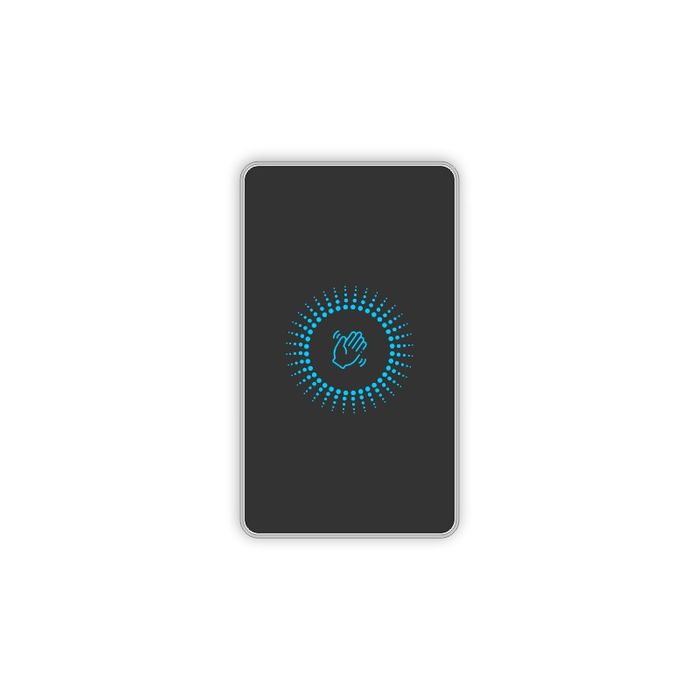

FS-NT50-10-IR-BMSH
)
)
Dimensions：86Lx50Wx10H(mm)
Power：12VDC or 24VDC
Output Contact：NO/NC/COM
Contact Rating：12-24V，3A
Frame:Alluminum
Panel：Tempered Glass
Logo：Customizable
Mechanical Life：100,000 tests
Suitable for Door：Hollow Door
Surface Mount
Operating temp：-20℃～+55℃(14-131F)
Suitable Humidity：0-95% (relative humidity)
Detection range：5-30 CM
LED Indicator：Standby blue:light breath function (optional)
Green LED indicator（Activated）
)
)
)
)
)
)
)
