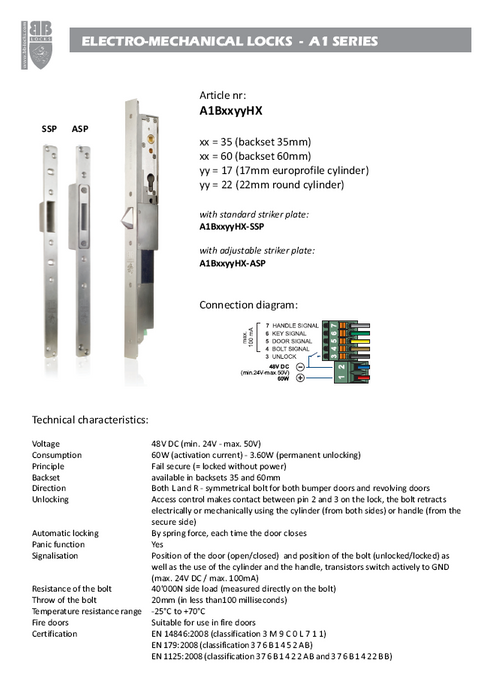

A1B3517HX-ASP
)
)
)

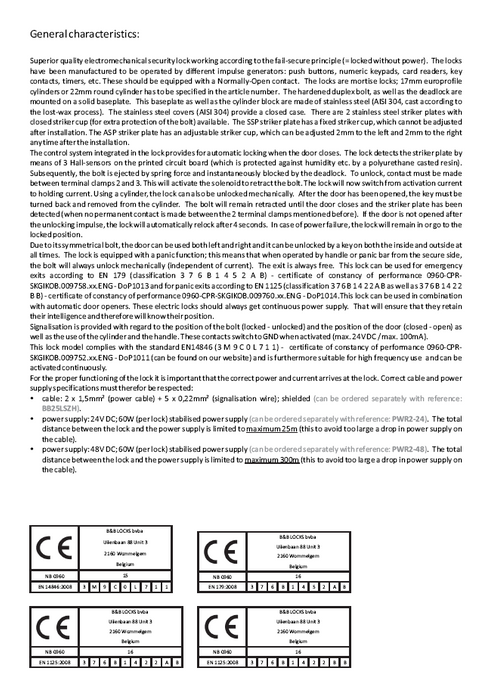

Superior quality electromechanical security lockworking according to the fail-secure principle (= locked without power). The locks have been manufactured to be operated by different impulse generators: push buttons, numeric keypads, card readers, key contacts, timers, etc. These should be equipped with a Normally-Open contact. The locks are mortise locks; 17mm europrofile cylinders or 22mmround cylinder has to be specified in the article number. The hardened duplex bolt, aswell as the deadlock are mounted on a solid baseplate. This baseplate as well as the cylinder block are made of stainless steel (AISI 304, cast according to the lost-wax process). The stainless steel covers (AISI 304) provide a closed case. There are 2 stainless steel striker plates with closed striker cup (for extra protection of the bolt) available. The SSP striker plate has a fixed striker cup,which cannot be adjusted after installation. The ASP striker plate has an adjustable striker cup, which can be adjusted 2mmto the left and 2mmto the right
any time after the installation.
The control systemintegrated in the lock provides for automatic locking when the door closes. The lock detects the striker plate by means of 3 Hall-sensors on the printed circuit board (which is protected against humidity etc. by a polyurethane casted resin). Subsequently, the bolt is ejected by spring force and instantaneously blocked by the deadlock. To unlock, contact must be made between terminal clamps 2 and 3. This will activate the solenoid to retract the bolt. The lock willnowswitch fromactivation current to holding current. Using a cylinder, the lock can also be unlocked mechanically. After the door has been opened, the key must be turned back and removed from the cylinder. The bolt will remain retracted until the door closes and the striker plate has been detected (when no permanent contact is made between the 2 terminal clamps mentioned before). If the door is not opened after the unlocking impulse, the lock will automatically relock after 4 seconds. In case ofpower failure, the lock will remain in or go to the
locked position.
Due to its symmetrical bolt, the door can be used both left and right and it can be unlocked by a key on both the inside and outside at all times. The lock is equipped with a panic function; this means that when operated by handle or panic bar from the secure side, the bolt will always unlock mechanically (independent of current). The exit is always free. This lock can be used for emergency exits according to EN 179 (classification 3 7 6 B 1 4 5 2 A B) - certificate of constancy of performance 0960-CPRSKGIKOB. 009758.xx.ENG-DoP1013 and for panic exits according to EN1125 (classification 3 7 6 B 1 4 2 2 A B aswell as 3 7 6 B 1 4 2 2 B B) - certificate of constancy of performance 0960-CPR-SKGIKOB.009760.xx.ENG - DoP1014.This lock can be used in combination with automatic door openers. These electric locks should always get continuous power supply. That will ensure that they retain their intelligence and therefore willknowtheir position.
Signalisation is provided with regard to the position of the bolt (locked - unlocked) and the position of the door (closed - open) as well as the use of the cylinder and the handle. These contacts switch toGNDwhen activated (max. 24VDC /max. 100mA).
This lock model complies with the standard EN14846 (3 M 9 C 0 L 7 1 1) - certificate of constancy of performance 0960-CPRSKGIKOB.009752.xx.ENG - DoP1011 (can be found on our website) and is furthermore suitable for high frequency use and can be activated continuously.
)
)
)
)
)
)
)
