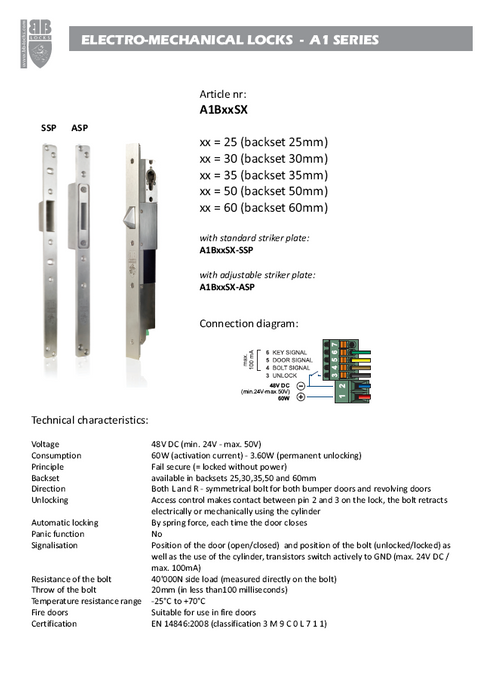

A1B30SX-ASP
)
)
)

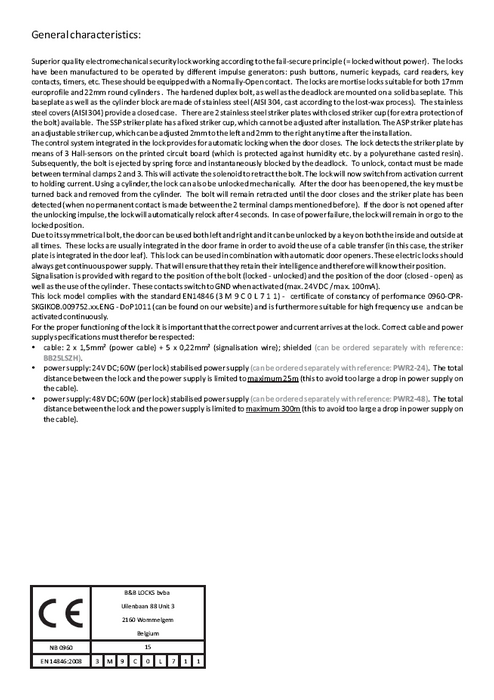

Superior quality electromechanical security lockworking according to the fail-secure principle (= locked without power). The locks have been manufactured to be operated by different impulse generators: push buttons, numeric keypads, card readers, key contacts, timers, etc. These should be equipped with a Normally-Open contact. The locks are mortise locks suitable for both17mm europrofile and22mm round cylinders . The hardened duplex bolt, aswell as the deadlock are mounted on a solid baseplate. This

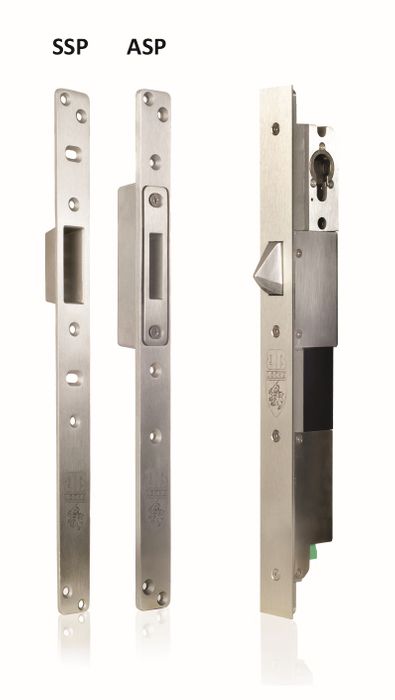

baseplate as well as the cylinder block are made of stainless steel (AISI 304, cast according to the lost-wax process). The stainless steel covers (AISI 304) provide a closed case. The re are 2 stainless steel striker plateswith closed striker cup (for extra protection of the bolt) available. The SSP striker plate has a fixed striker cup,which cannot be adjusted after installation. TheASP striker plate has an adjustable striker cup,which can be adjusted 2mmto the left and 2mmto the right any time after the installation.
The control system integrated in the lock provides for automatic locking when the door closes. The lock detects the striker plate by means of 3 Hall-sensors on the printed circuit board (which is protected against humidity etc. by a polyurethane casted resin). Subsequently, the bolt is ejected by spring force and instantaneously blocked by the deadlock. To unlock, contact must be made between terminal clamps 2 and 3. This will activate the solenoid to retract the bolt. The lock willnowswitch fromactivation current to holding current. Using a cylinder, the lock can also be unlocked mechanically. After the door has been opened, the key must be turned back and removed from the cylinder. The bolt will remain retracted until the door closes and the striker plate has been detected (when no permanent contact is made between the 2 the unlocking impulse, the lock will automatically relock after 4 seconds. In case ofpower failure, the lock will remain in or go to the locked position.
Due to its symmetrical bolt, the door can be used both left and right and it can be unlocked by a key on both the inside and outside at all times. These locks are usually integrated in the door frame in order to avoid the use of a cable transfer (in this case, the striker plate is integrated in the door leaf). This lock can be used in combination with automatic door openers. These electric locks should always get continuous power supply. That will ensure that they retain their intelligence and therefore willknowtheir position.
Signalisation is provided with regard to the position of the bolt (locked - unlocked) and the position of the door (closed - open) as well as the use of the cylinder. These contacts switch toGNDwhen activated (max. 24VDC /max. 100mA).
)
)
)
)
)
)
)
